AVS Digital Gauge 4 Corner

FEATURES:

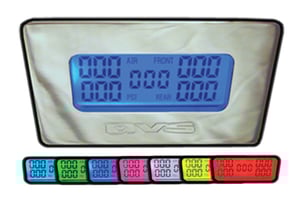

DIGITAL DISPLAY WITH 5 READOUTS FOR 4 CORNERS + TANK (Up to 230-PSI)
CHROME, BRUSHED ALUMINUM, and BLACK TRIM PLATE (yes, all 3 of these plates are included in the kit)
L.E.D. BACKLIT DISPLAY WITH 7 DIFFERENT COLORS (press the button to set the color that you desire)
BUTTONS FOR WARNING PRESSURE SETTINGS ARE HIDDEN UNDER THE UNIT FOR A CLEANER LOOK AND ALSO TO PREVENT TAMPERING OF SETTINGS
230 PSI SYSTEM (our senders are smaller than OTHERS and they are anodized aluminum for an added touch. +/-5 PSI tolerance.)
SENSOR HARNESSES, FIVE 20' HARNESSES (these plug into the sensors and supply both a power and ground as well as the feedback wire. This allows the installer to route all wiring back to the dash eliminating the chance of bad connections and loose grounds like other gauges).
UPDATED FEATURES:

100% WATERTPROOF SENSORS
100% WATERPROOF WIRE HARNESSES/PLUGS
PLUG AND PLAY MAIN HARNESS. ONLY 2 WIRES TO HOOK UP, (+12V & -12V). ALL OF THE INCLUDED SENSOR CORDS PLUG RIGHT INTO THE HARNESS.
EXTERNAL PUSH BUTTON TO CHANGE THE DISPLAY COLOR ANYTIME THAT YOU WANT. THE INCLUDED PUSH BUTTON ALSO PLUGS RIGHT INTO THE MAIN HARNESS.
EXTRA BILLET FACES COME WITH THE THREADED BOLTS ALREADY INSTALLED. TO PUT ON A NEW FACE, SIMPLY REMOVE THE FOUR NUTS ON THE BACK OF THE UNIT AND REMOVE THE METAL CASING. PICK UP THE INTERNAL CIRCUIT BOARDS AND PLACE OVER THE BOLTS OF THE NEW PLATE. REINSTALL THE FOUR NUTS AND U R DONE!!!
ALL 5 OF THE SENSOR CORDS ARE NOW 20' LONG. NO MORE 15' FOOTERS!
INSTALLATION MEASUREMENTS:

CUT OUT REQUIRED = 3.35" WIDE X 2.15" TALL (86mm X 55mm)
MOUNTING DEPTH = 1.30" (33mm)
TRIM PLATE MEASUREMENTS: 3.60" WIDE X 2.34" TALL X .20" THICK (91mm X 60mm X 5mm)
1-YEAR LIMITED WARRANTY AGAINST MANUFACTURER DEFECTS
