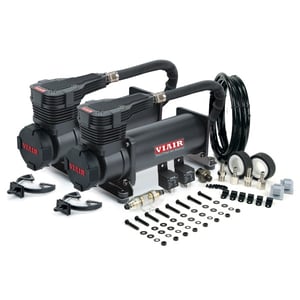

Viair 485C Dual Pack

VIAIR’s brand new 485C compressor delivers game-changing performance, rated at 100% duty @ 200 PSI. This next generation compressor is a true 200 PSI-rated working pressure pump.

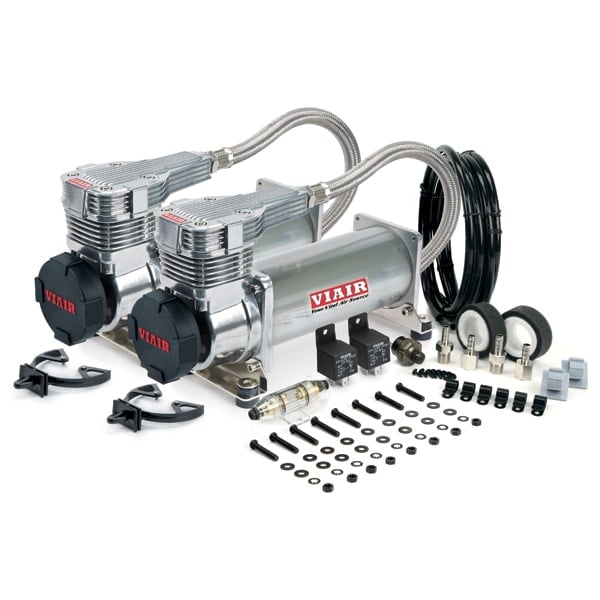

The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed sleek head design, increased duty cycle and quieter dB levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.

FEATURES
– (2) 485C (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors
– (2) Air Filter Assemblies
– (2) VIAIR Removable Filter Covers
– (2) Remote Mount Brackets
– (2) Sets of Remote Mount Fittings
– (2) Sets of Spare Air Filter Elements
– (2) Leader Hose Clips
– (6) Air Line Clips with Included Hardware
– (8) Sets of Nuts, Bolts, Washers and Lock Washers
– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
– (2) 40-Amp Relays
– (1) One Pressure Switch (165 PSI on, 200 PSI off)
– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
– Air Line (For Remote Mount Filter Installation)
SPECIFICATIONS
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 44 Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
– Net Weight: 22.10 lbs.
